Technical details

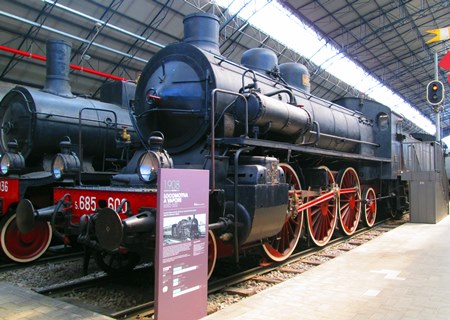

Series | 685 |
Set-up | 1'C1' (2-6-2) |
Length | 11730 mm |
Diameter driving wheels | 1850 mm |
Weight full | 71 ton |
Weight empty | 64 ton |
Overheated area | 49 m2 |
Grate area | 35 m2 |
Gear | Walschaerts |
Cilinders | 4: 420x650 mm |
Fuel capacity | coal: 9 ton |
Water capacity | 22 m3 |
Power | 919 kW |
Remarks | The Class 685 was the simple-expansion and superheated version of the pre-existing FS Class 680 locomotive. It had 4 cylinders which operaited in pairs (2x2). |
